How tall is Stop sign assembly?

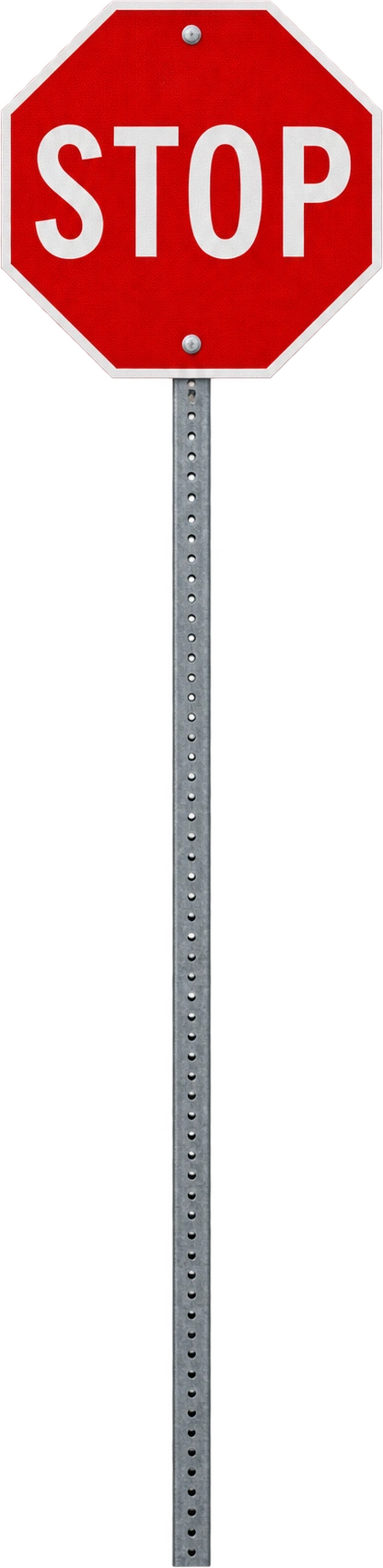

This stop-sign assembly uses a seven-foot mounting reference measured to the bottom of the sign. The red panel extends above that endpoint.
2.1336 m
Sourced measurement- Measurement
- 2023 MUTCD · selected seven-foot mounting reference · to sign bottom
- Subject or version
- 2023 MUTCD · selected seven-foot mounting reference
- In feet, rounded
- 7 ft (1 ft = 0.3048 m)
Add more subjects or change the units in the playground.
A little more perspective
The December 2023 MUTCD specifies a seven-foot minimum mounting height in the stated business, commercial or residential conditions where parking, pedestrian or bicycle movements can affect visibility. Its reference is the curb top, or the near edge of the traveled way where there is no curb. This illustration chooses exactly seven feet for a level, no-curb comparison; it does not claim that every stop sign has this height.
The selected 2.1336 meters ends at the lower edge of the red panel, leaving the panel itself above the marker. The post and sign are illustrative, with a nominal 30-inch panel appearance and no separately calibrated panel width. This is a dated dimensional example, not an installation design.
Quick facts
This stop-sign assembly uses a seven-foot mounting reference measured to the bottom of the sign. The red panel extends above that endpoint.
For a presentation or a research note, include the subject, the measurement definition, and the measurement used. A picture alone cannot explain those choices. The comparison guide explains how to export an image and its source notes together.
